200 Ground Mount System

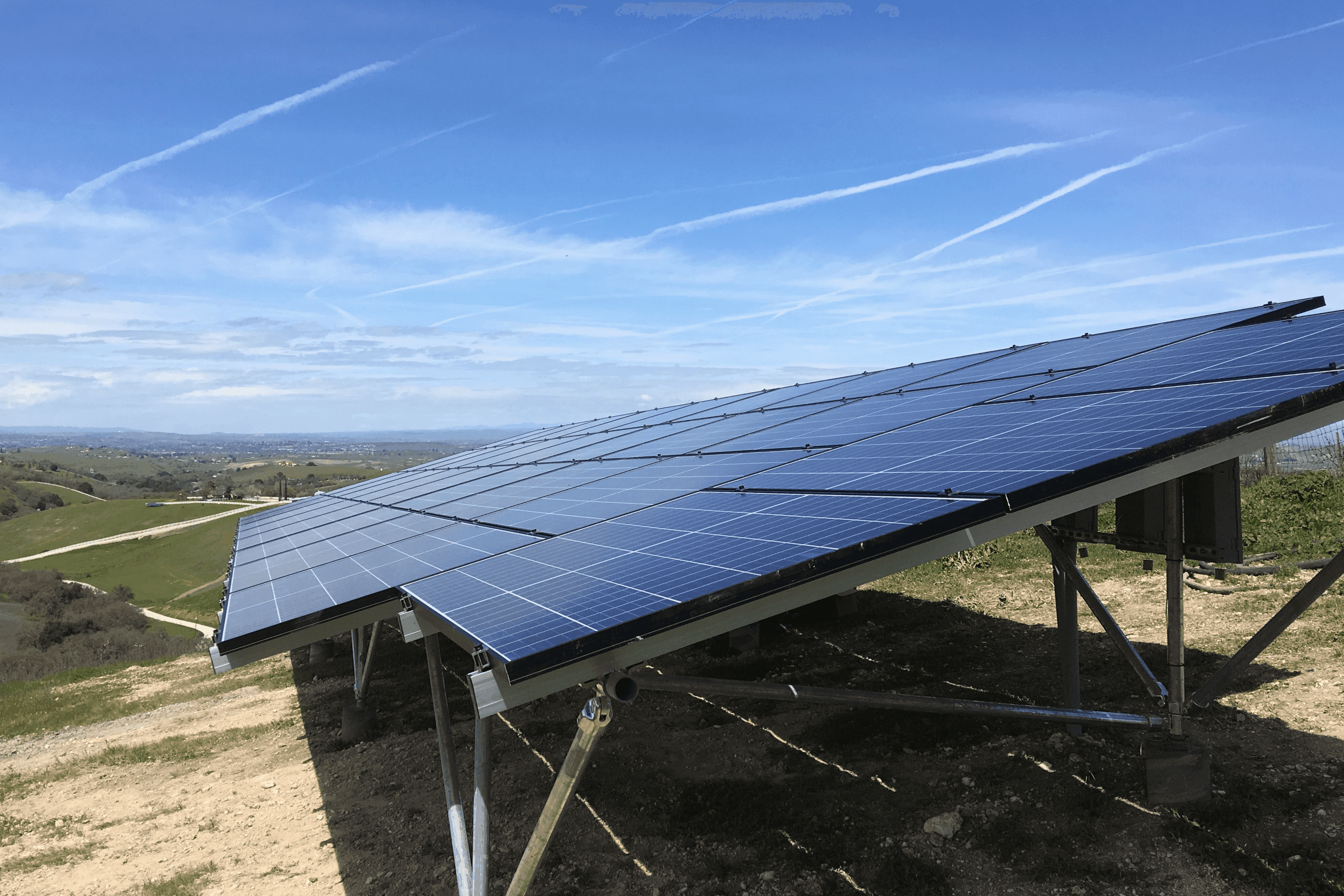

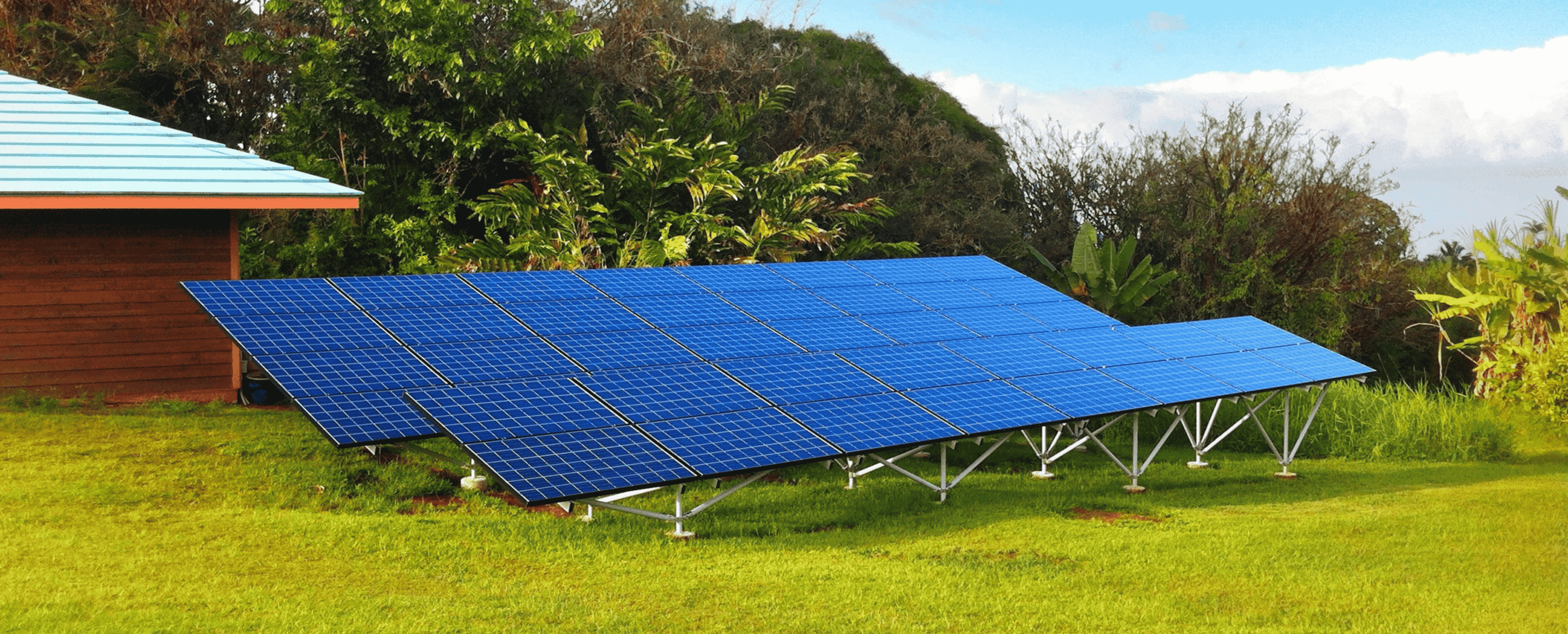

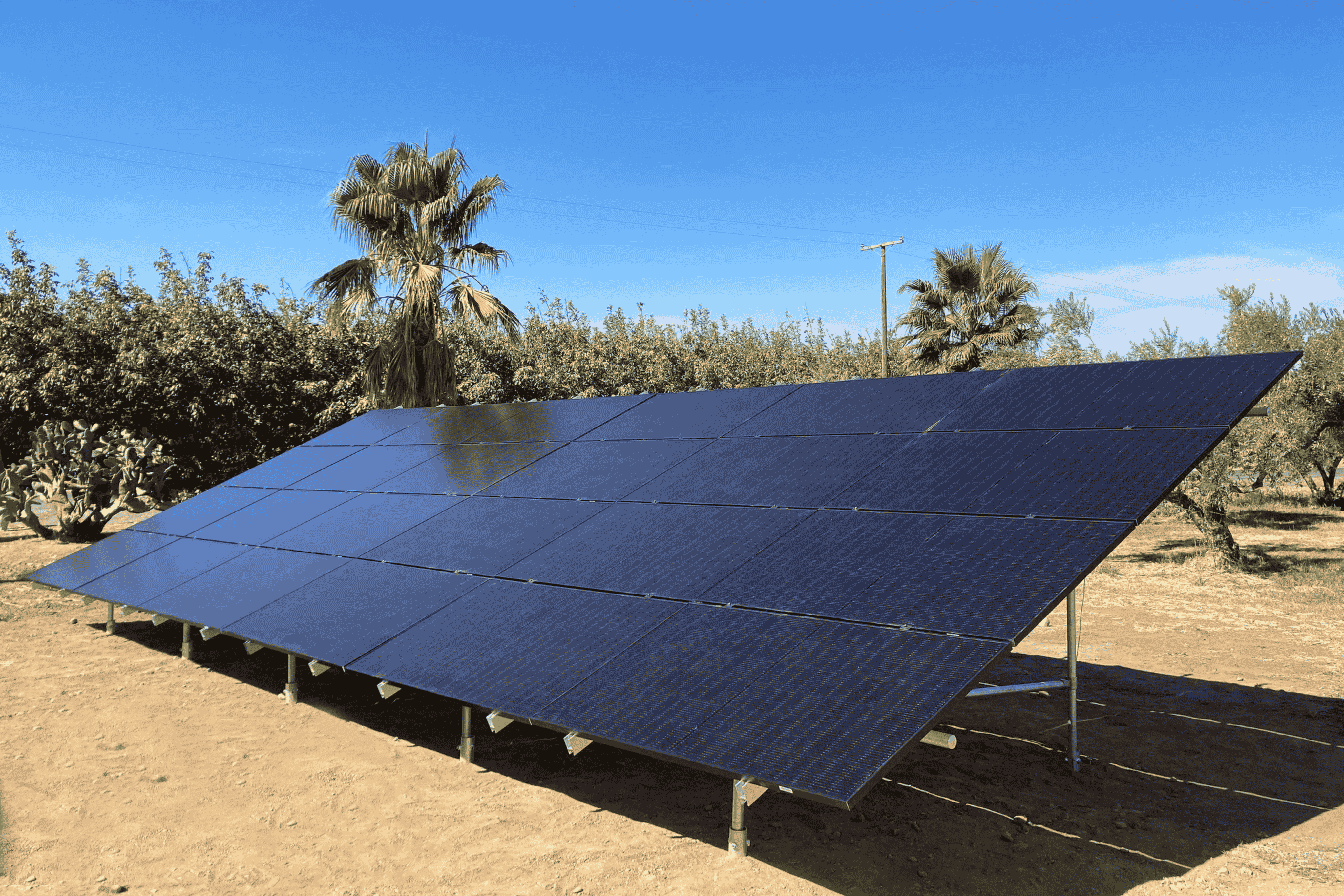

The Adaptable High Quality Ground Mount

The Series 200 Ground Mount System is a flexible system that optimizes materials and minimizes footprint. The system is designed to easily attach to a standard 1 ½” galvanized pipe structure using structural pipe fittings. Newly developed engineering enables configurations up to five-modules high and a new foundation option utilizing ground screws via 2” schedule pipe adapters. The system design and engineering are fully compatible with ground screws, grade beams & standard pier concrete foundations. The S200 Rail profile is also fully compatible with familiar SnapNrack components like the Ultra Rail module clamps and industry-leading Wire Management Solutions & Accessories.

200 Ground Mount System

  • Easily assembles using snap-in bonding Pipe Clamps that feature channel nuts with integrated bonding pins
  • Integrates with Schedule 40 or 80 galvanized 1.5” pipe
  • System design & engineering compatible with ground screw, grade beam & standard pier concrete foundations
  • Configures easily to desired tilt (0-45 degrees) with max adjustability for precise alignment on any terrain
  • Improved engineering allows for up to five-module high assembly
  • Fully compatible with all SnapNrack module clamps and accessories like SnapNrack’s Industry-leading offering of Wire Management Solutions, including snap-in Junction Boxes & Universal Wire Clamps
  • Open Ground Rail channel creates integrated wire management so wires are neatly organized & secure for the life of the system
  • Using pipe structural fittings, the labor hours to install the system are typically less than that required for a more complicated racking system

Technical Features

Series 200 Materials
  • Ground Rail: 6063 Aluminum Rail
  • Bonding Pipe Clamp:6000 Series Aluminum
  • Hollaender Fittings:Aluminum Alloy
  • Stainless steel hardware: Galvanized steel
Series 200 Material Finish
  • Ground Rail: Clear anodized aluminum
  • Bonding Pipe Clamp: Anodized Aluminum
Series 200 Torque Specification
  • Bonding Pipe Clamp: 12 ft-lbs
  • Set Screws for Hollaender fittings: 17 ft-lbs
  • Module attachment: Silver Hardware 10-16 ft-lbs, Black Hardware 8-10 ft-lbs
  • Pipe Clamp: 12 ft-lbs
Series 200 Snow Loads
  • 120 psf
Series 200 Wind Loads
  • 170 mph
Series 200 Array Pitch
  • Up to 45 degrees
Warranty
  • 25 Limited Product Warranty
