Wire Management Solutions & Accessories
A complete portfolio of industry-leading wire & conduit management solutions & accessories
SnapNrack offers the largest set of mounting accessories to enhance the installation process. SnapNrack Wire Management Solutions & Accessories comprise a set of dedicated components to reliably, and cost-effectively secure PV module and microinverter leads. All components are made of materials that have been selected for their ability to handle high UV exposure and extreme rooftop temperatures common under solar arrays.
The complete portfolio of industry-leading wire and conduit management solutions & accessories ensure installers are able to keep wires neatly organized & secure for the life of the system, providing a clean finish to the array. True the SnapNrack tradition, all solutions ship with nuts & bolts preassembled for easy install & only require a 1/2" socket single tool install.
Wire Management Solutions & Accessories

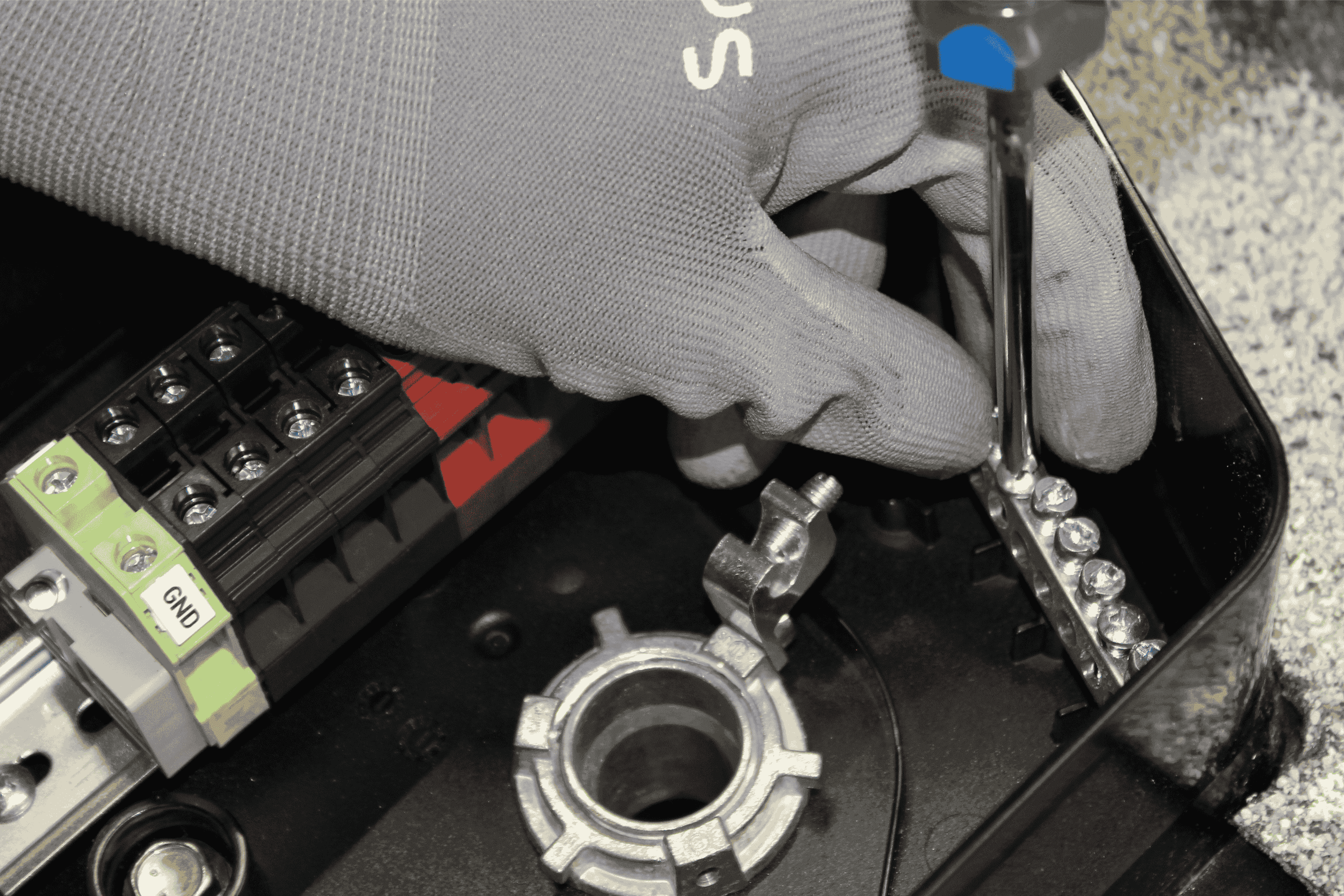

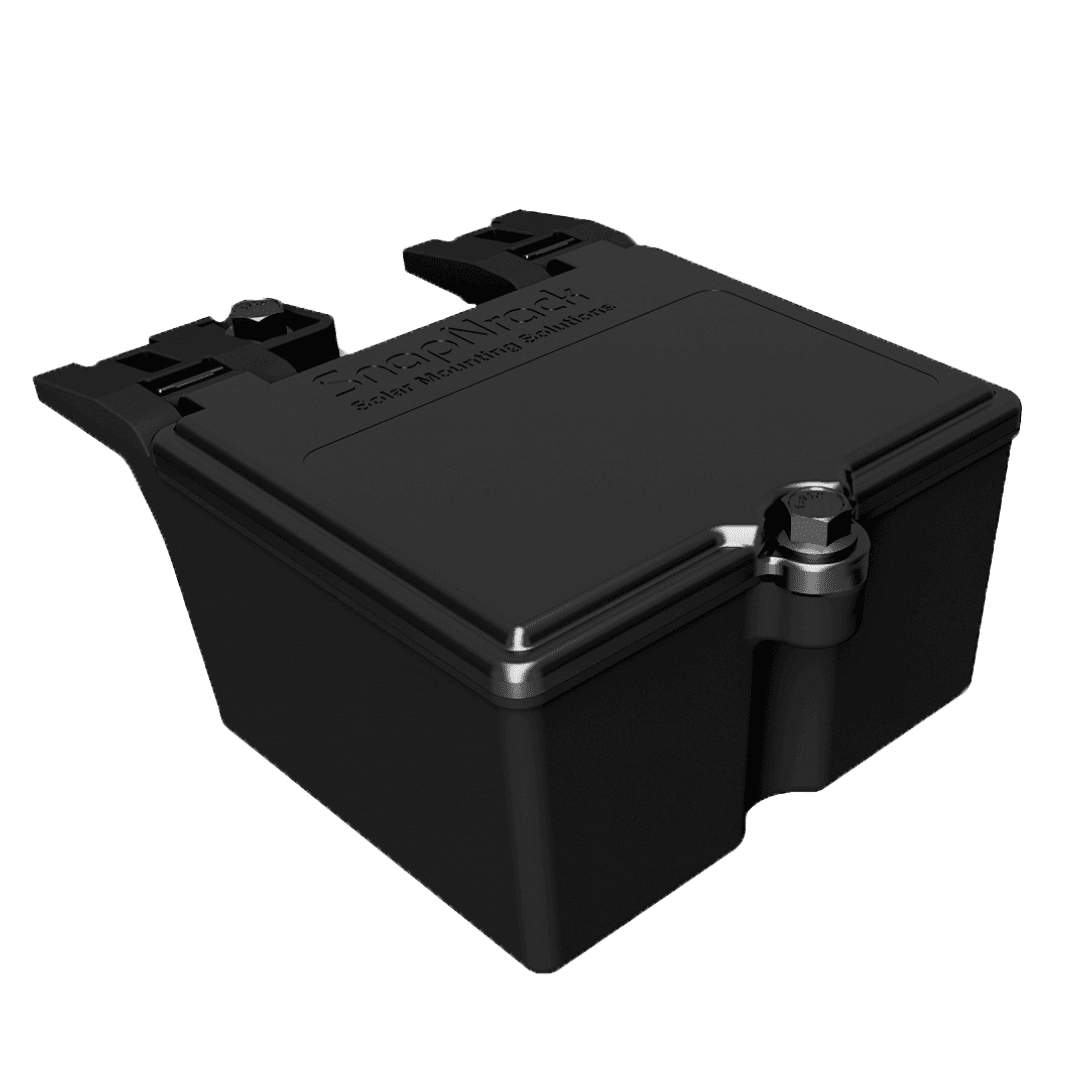

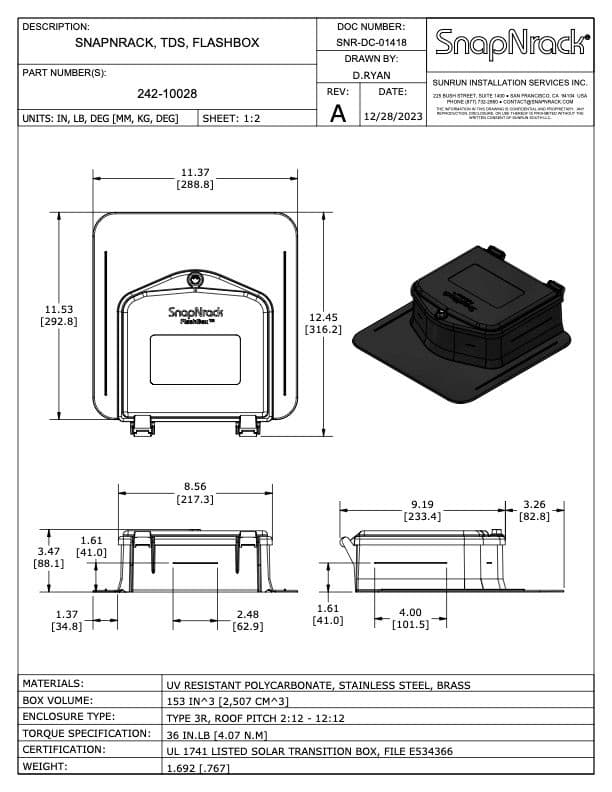

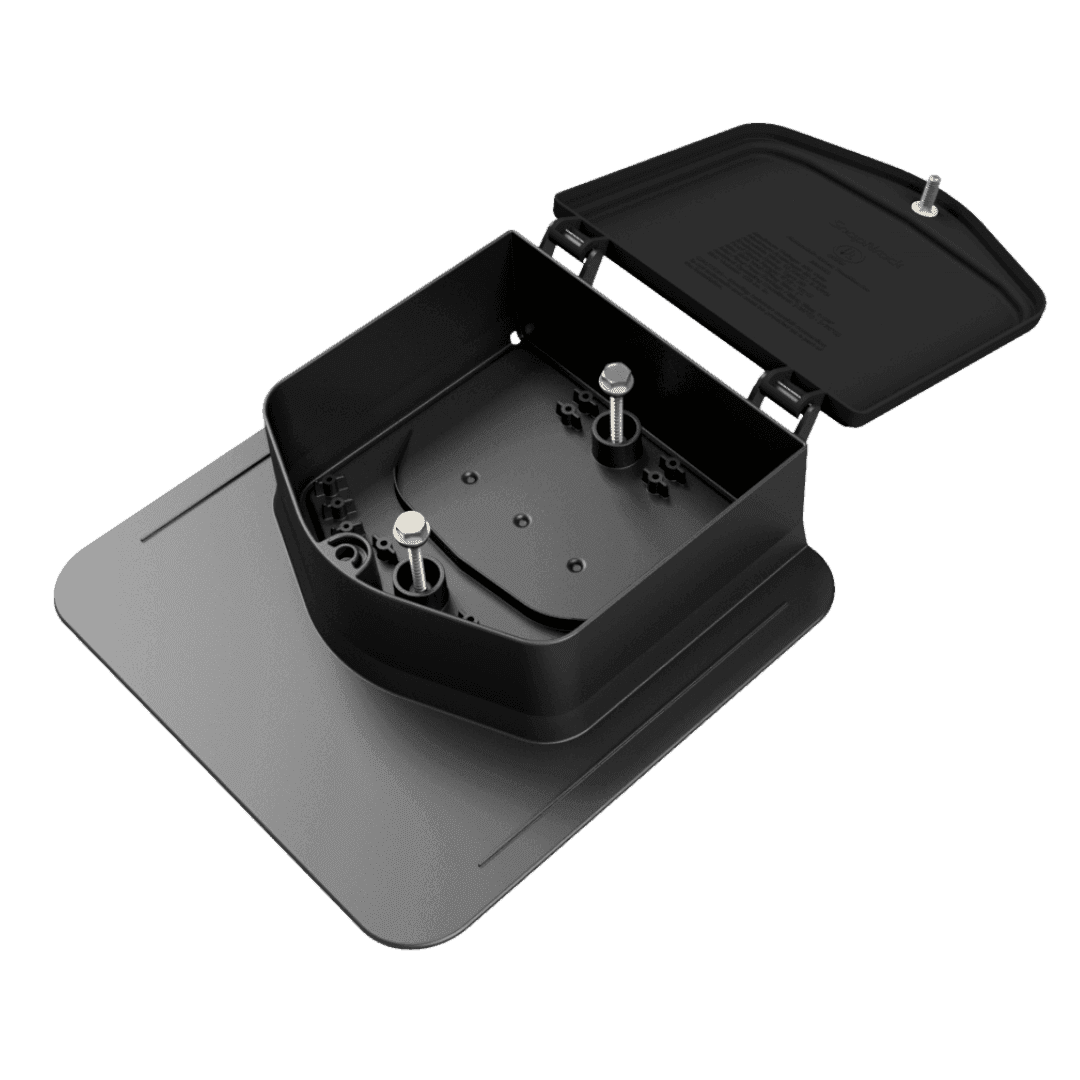

Junction Boxes – Introducing FlashBox™
- New FlashBox™ with integrated flashing provides a pass through for attic runs
- FlashBox™ features captive mounting screws to the box lid
- FlashBox™ is NEMA 3R rating to conceal & protect electrical connections & UL1741 Listed
- Quick & easy installation utilizing snap-in features & maintains single tool installation with 1/2” socket

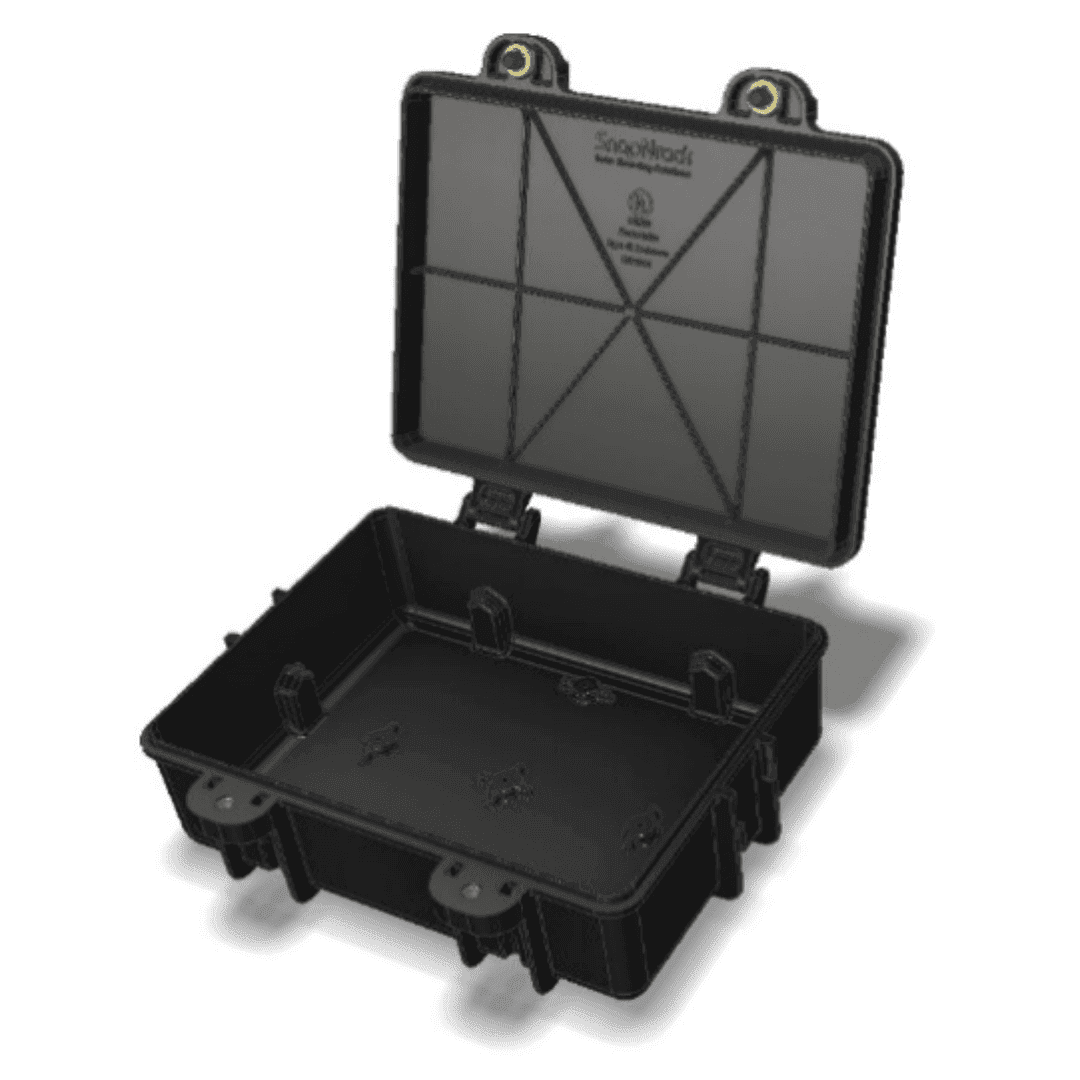

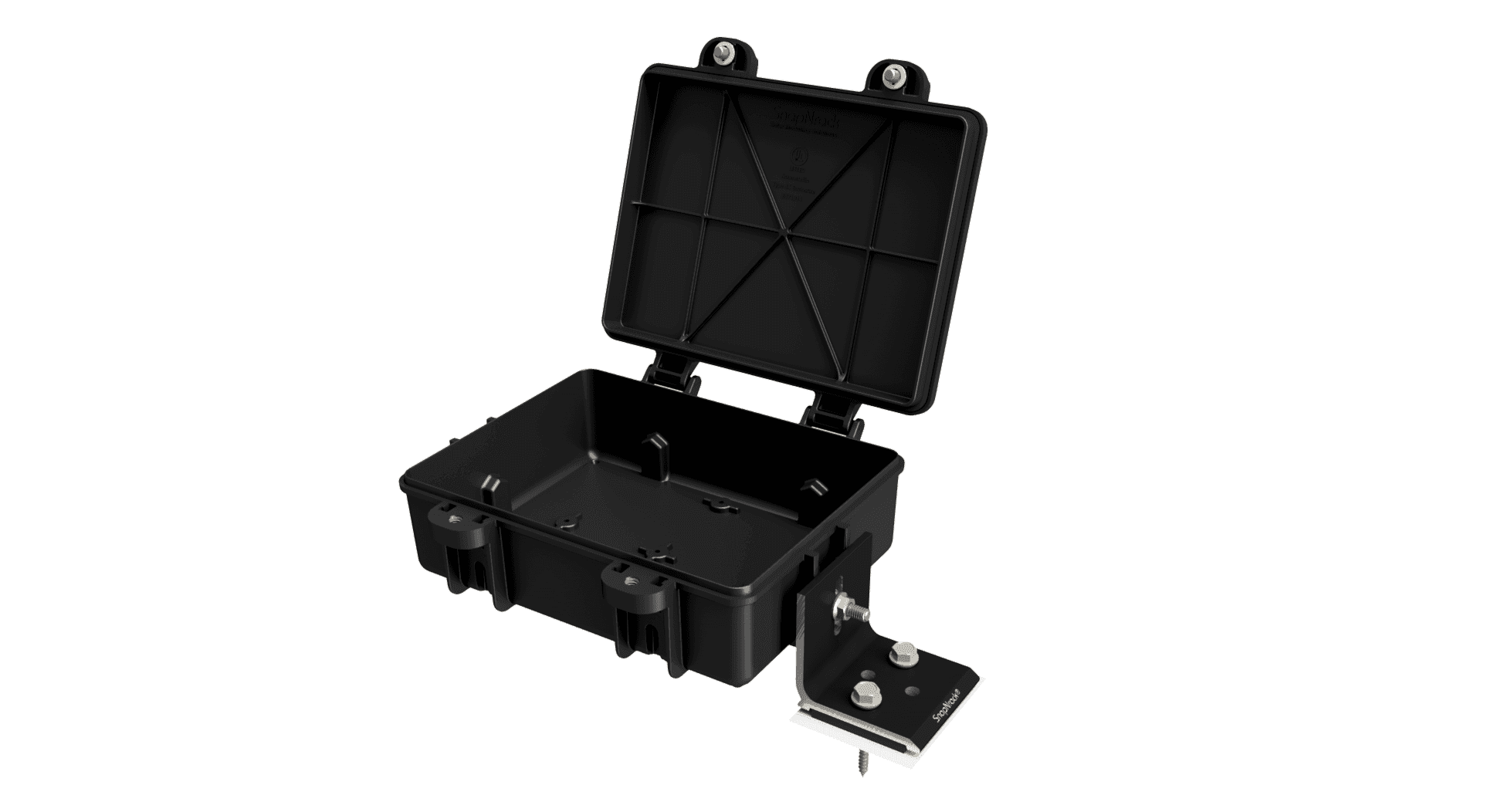

- Junction boxes available in different sizes & applications for multiple wire management situations

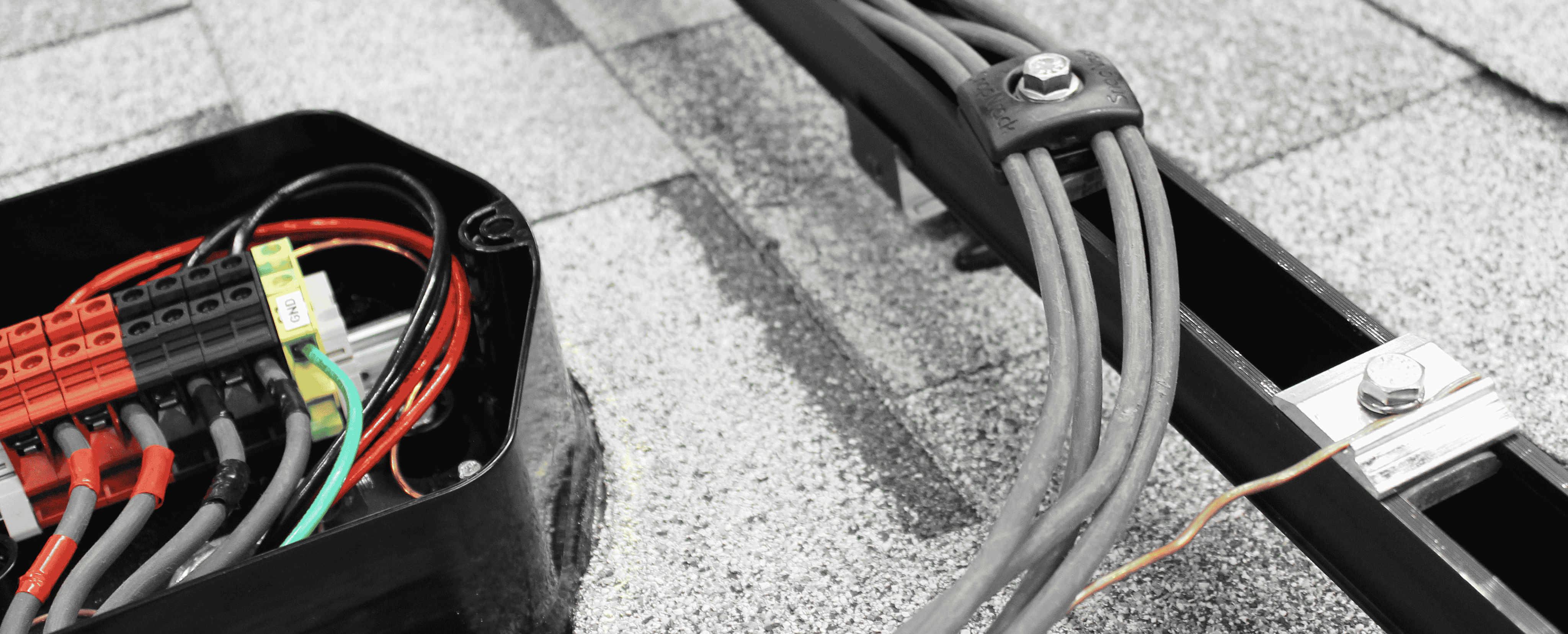

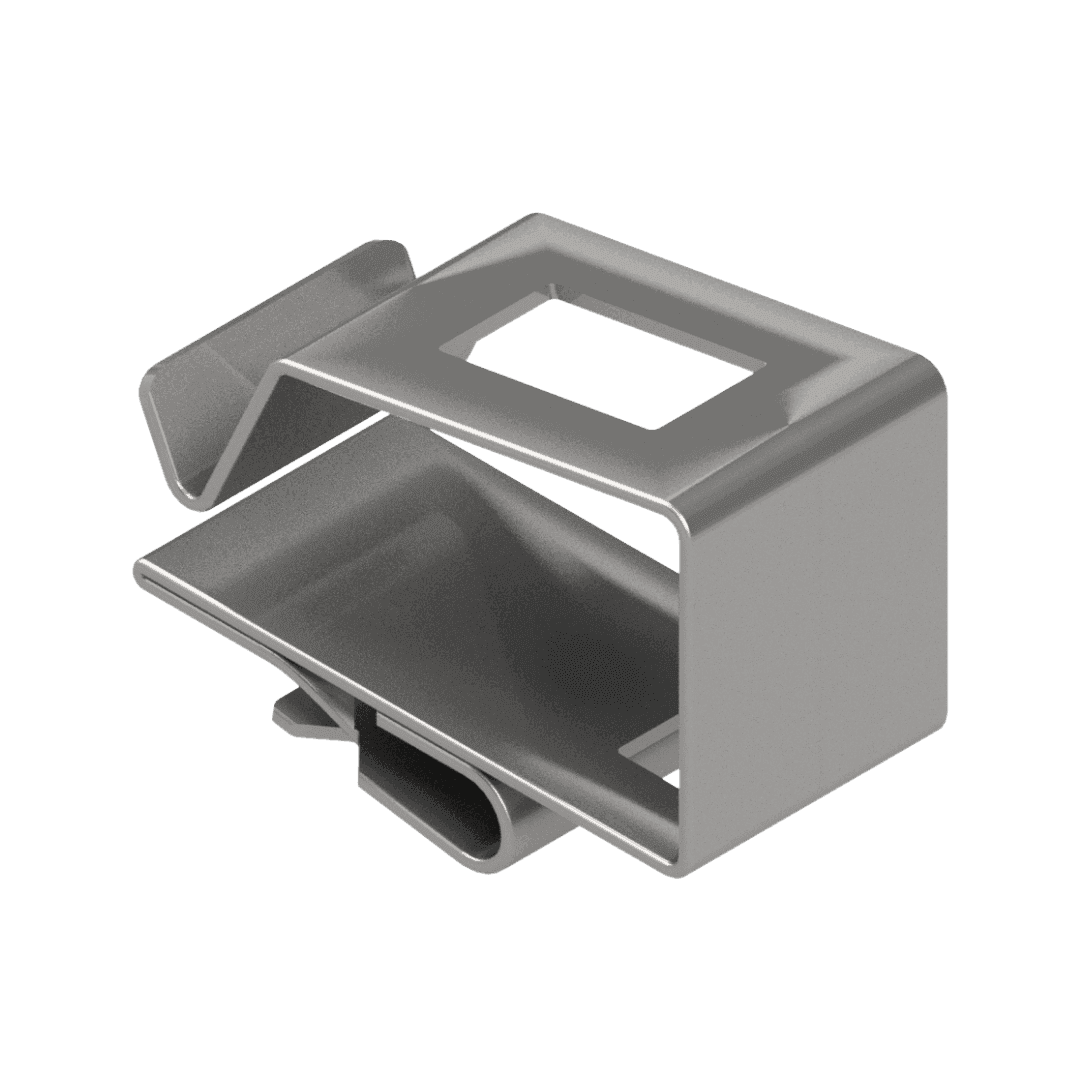

Universal Wire Clamp & Wire Retention Clip

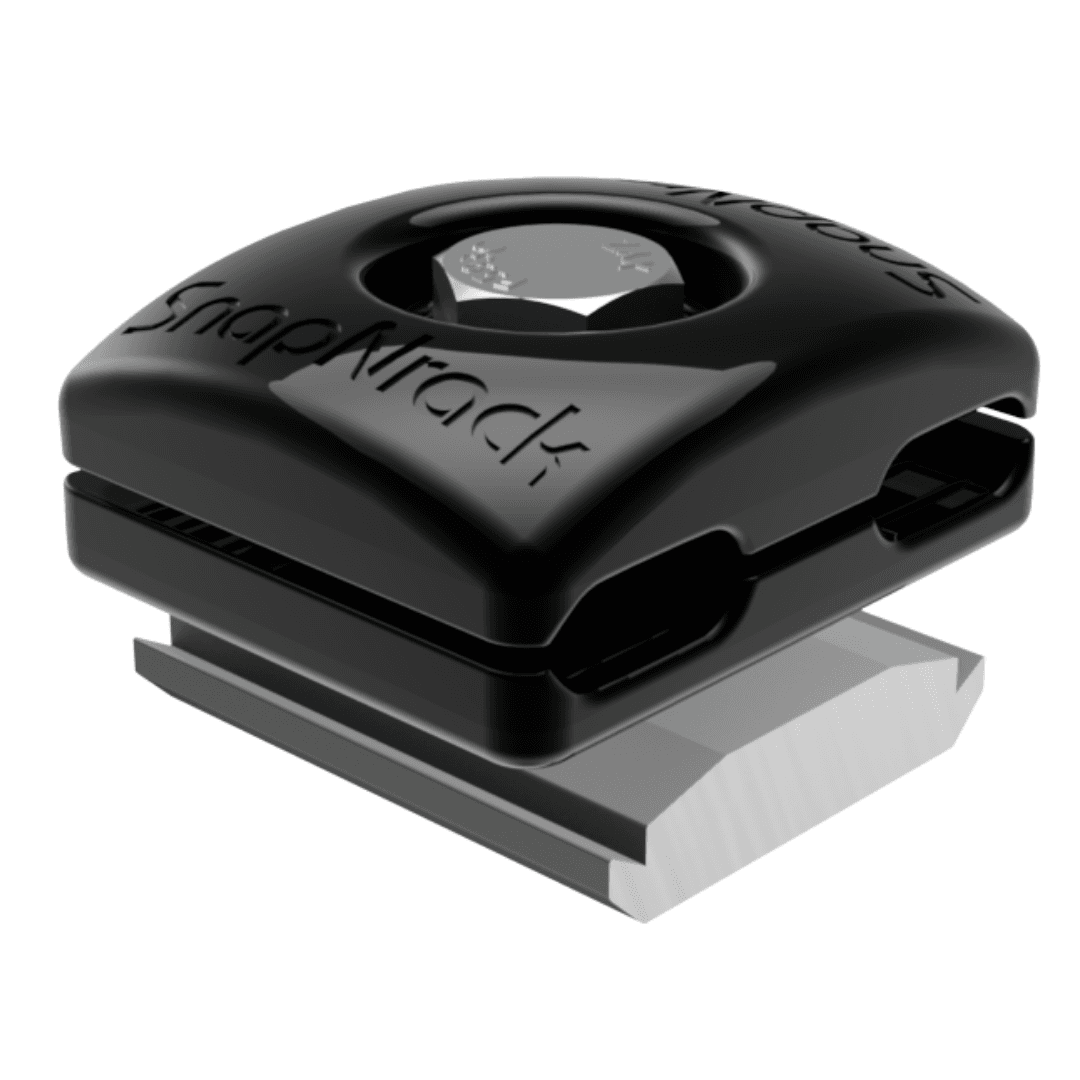

- Universal Wire Clamp can easily hold Enphase IQ Cables & up to 4 PV Wires that easily attaches to Ultra Rail using a channel nut and a single bolt with a 1/2” socket

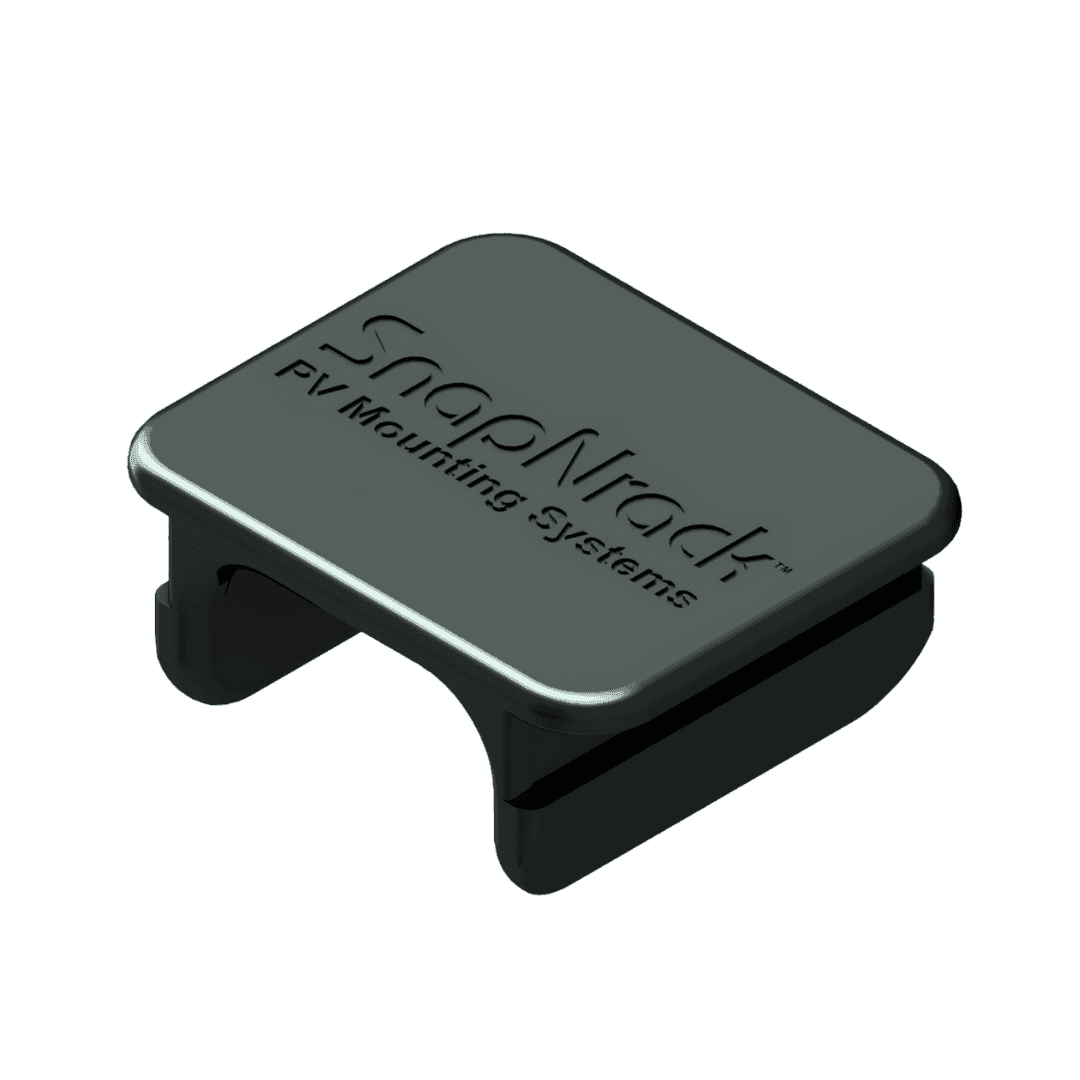

- Wire Retention Clip quickly snaps into place, securing PV conductor and AC trunk lines within channel

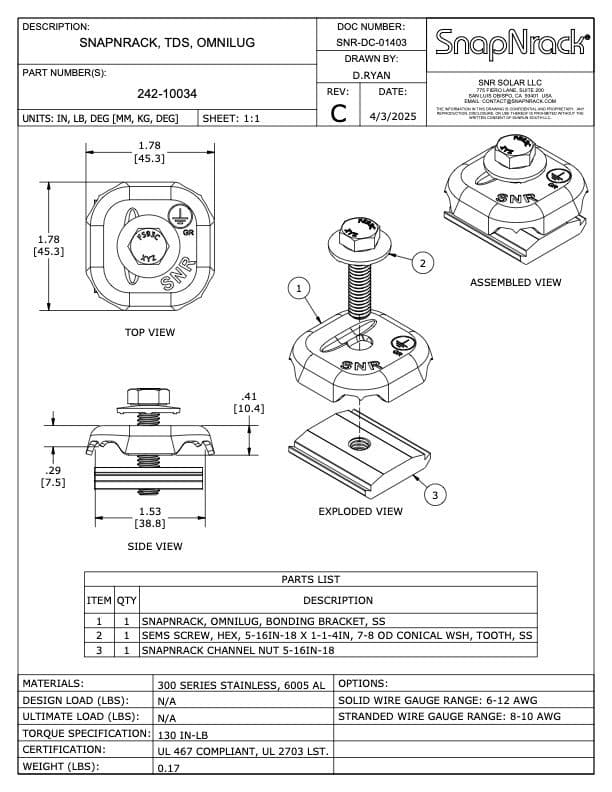

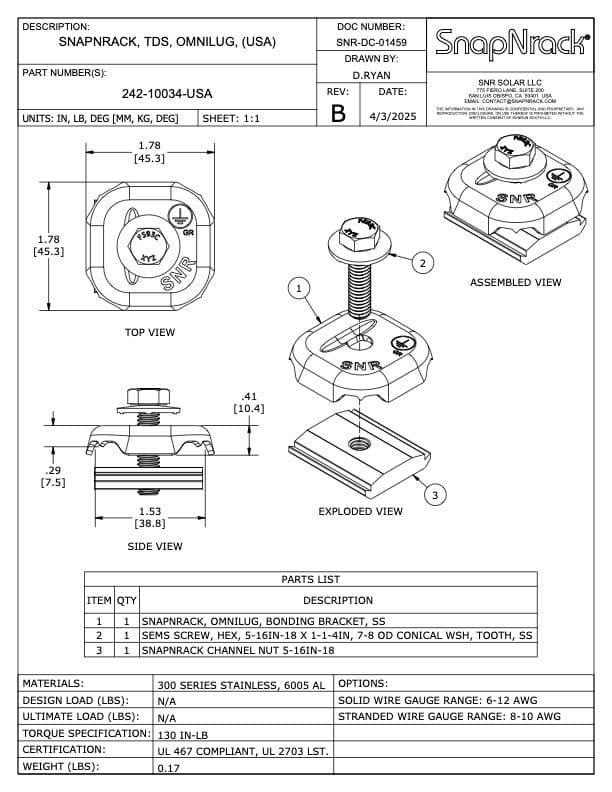

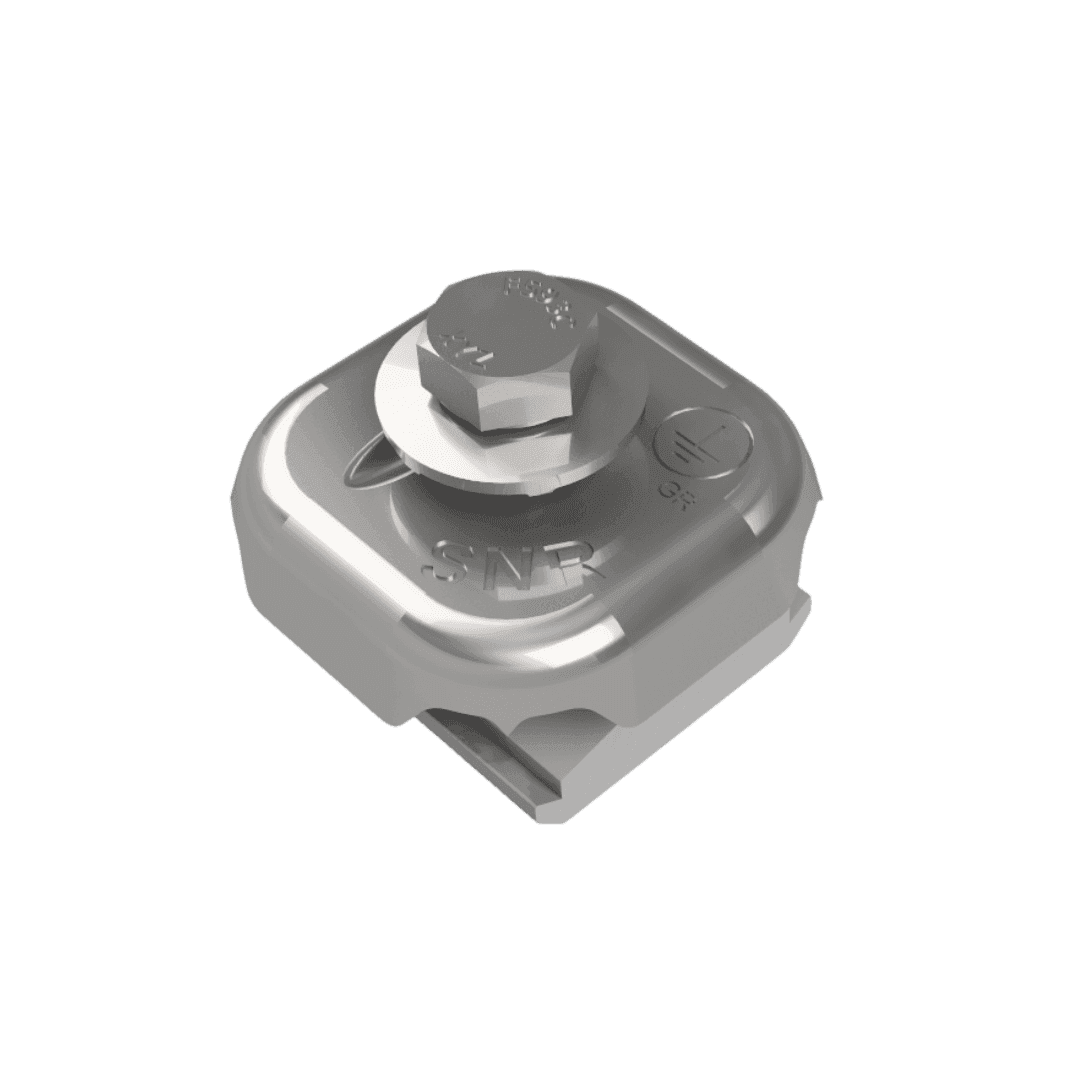

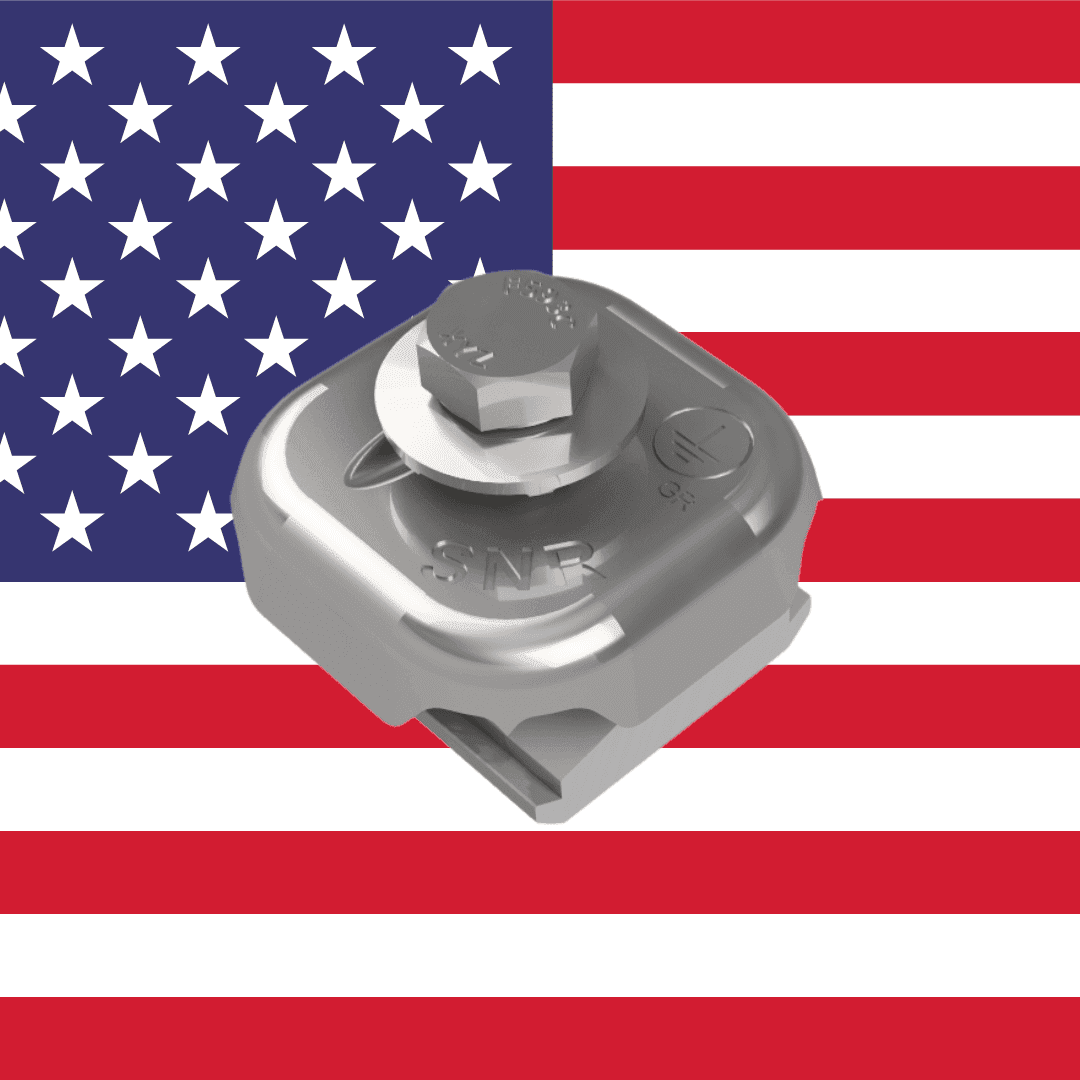

NEW! OmniLug™
- The new OmniLug is a fusion of the Ground Lug & MLPE Rail Attachment that combines both functions into a single UL Listed SKU designed for multiple SnapNrack systems.
- A reliable UL Listed system Ground Lug that provides a secure attachment point for the system grounding conductor.
- Accepts 6-12 awg solid or 8-10 awg stranded copper conductors

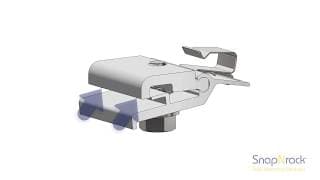

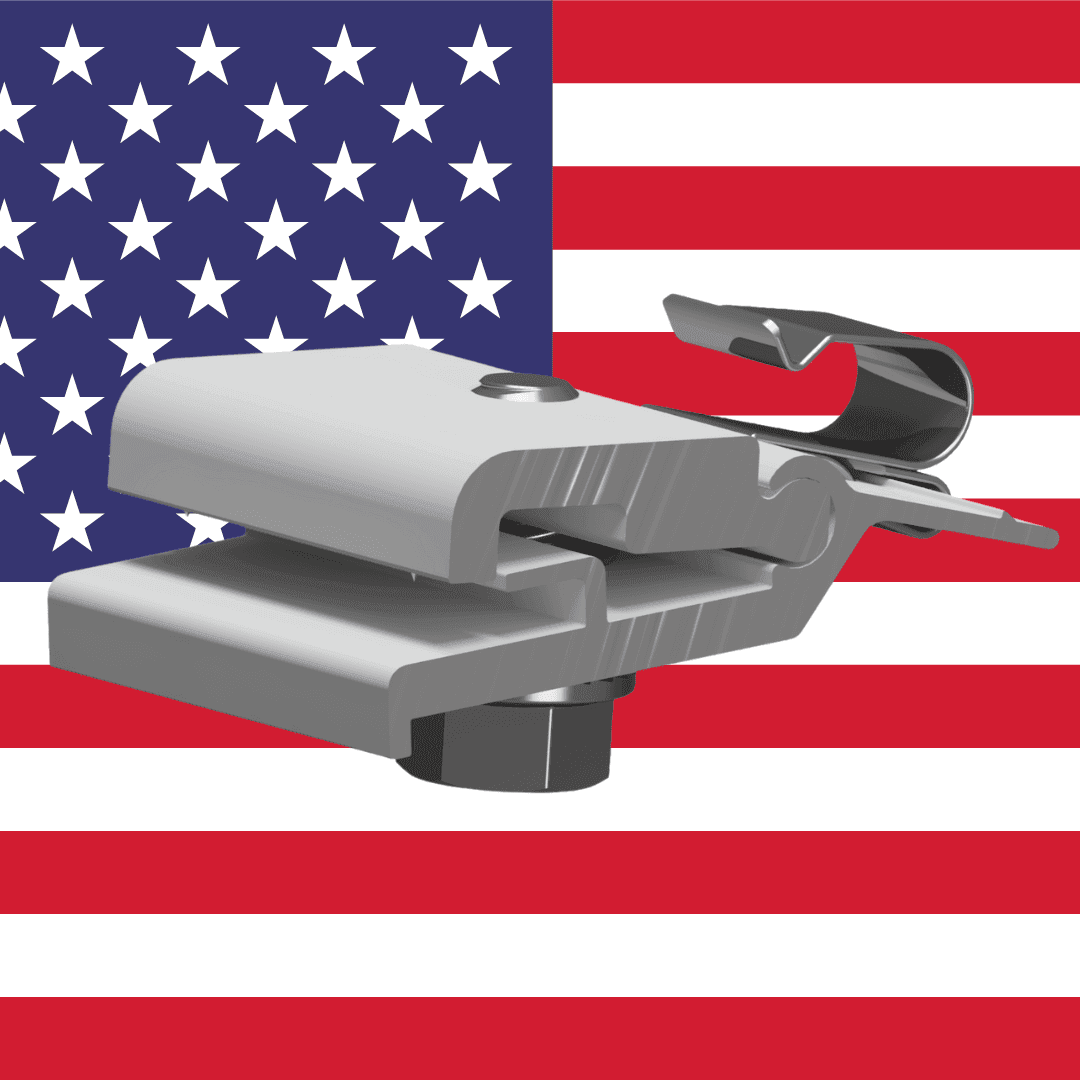

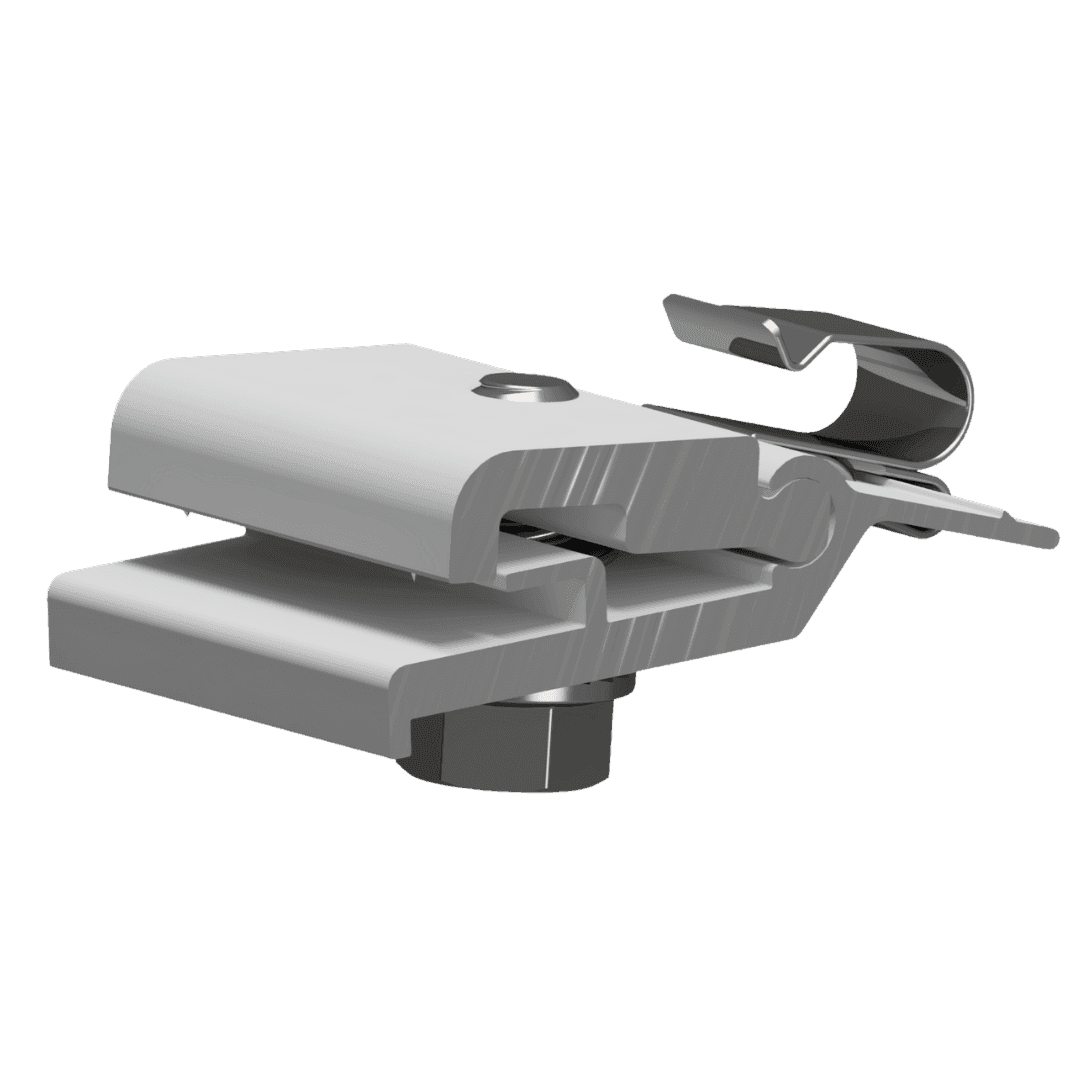

- Enables the frame of any MLPE device to attach directly to all SnapNrack rail & railless tracks.

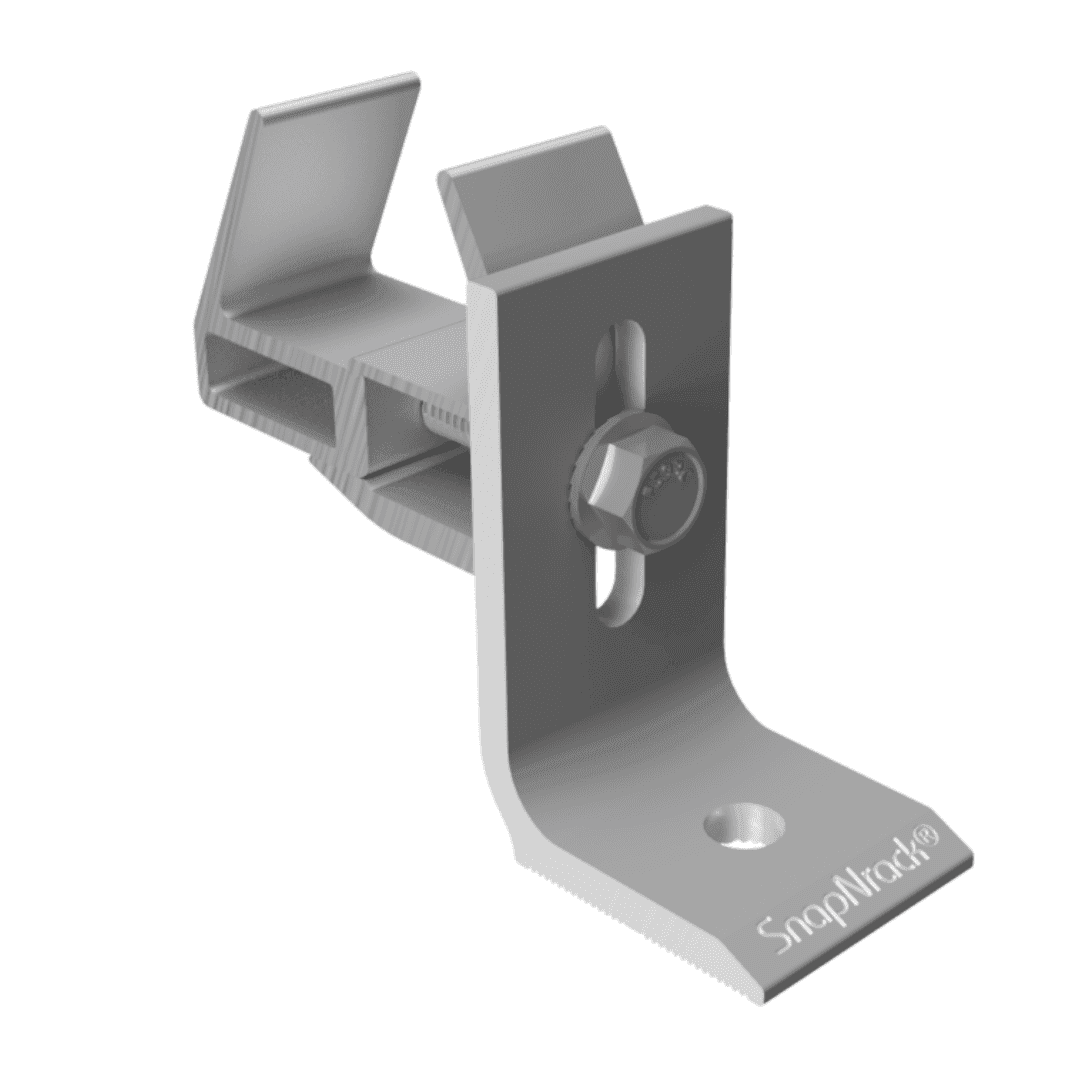

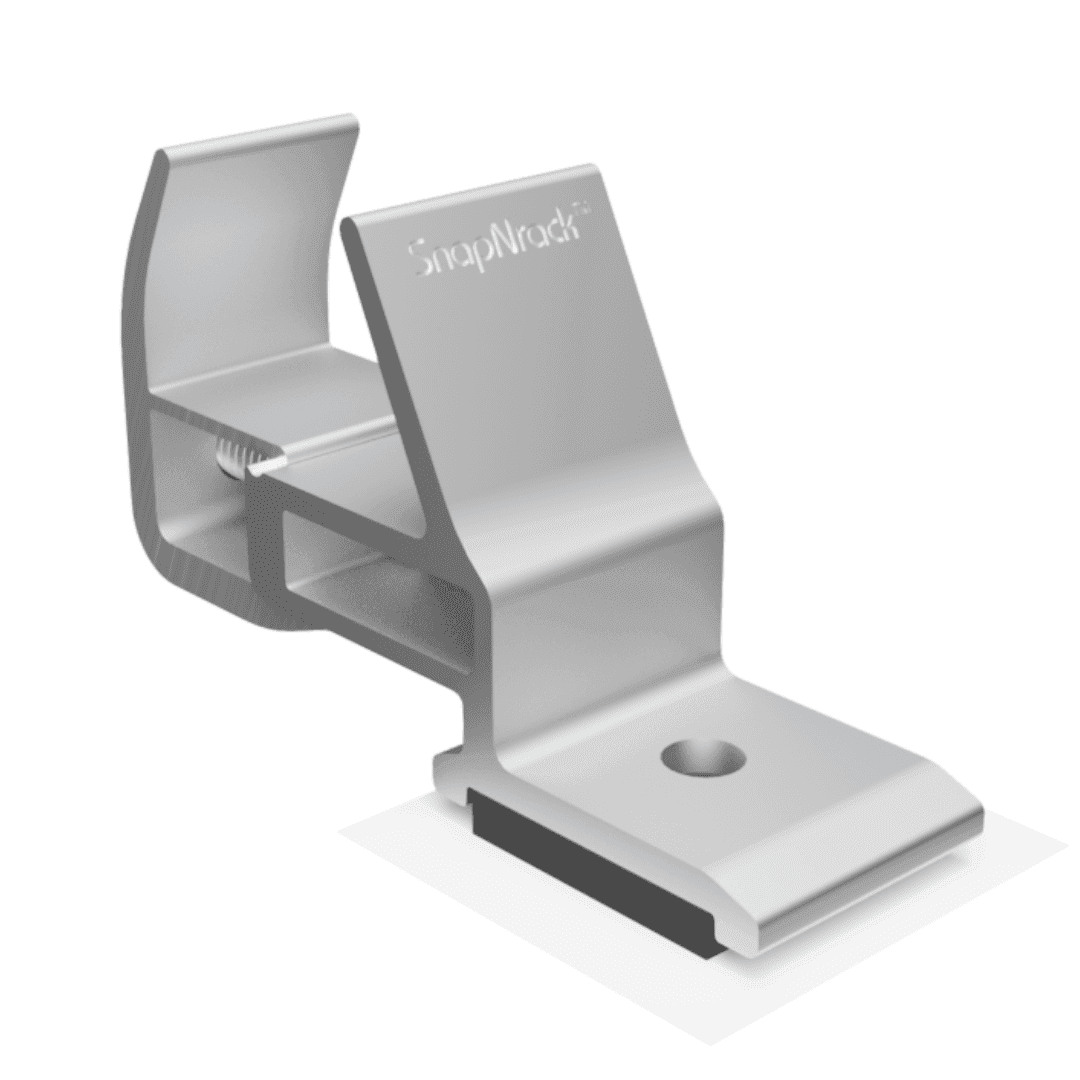

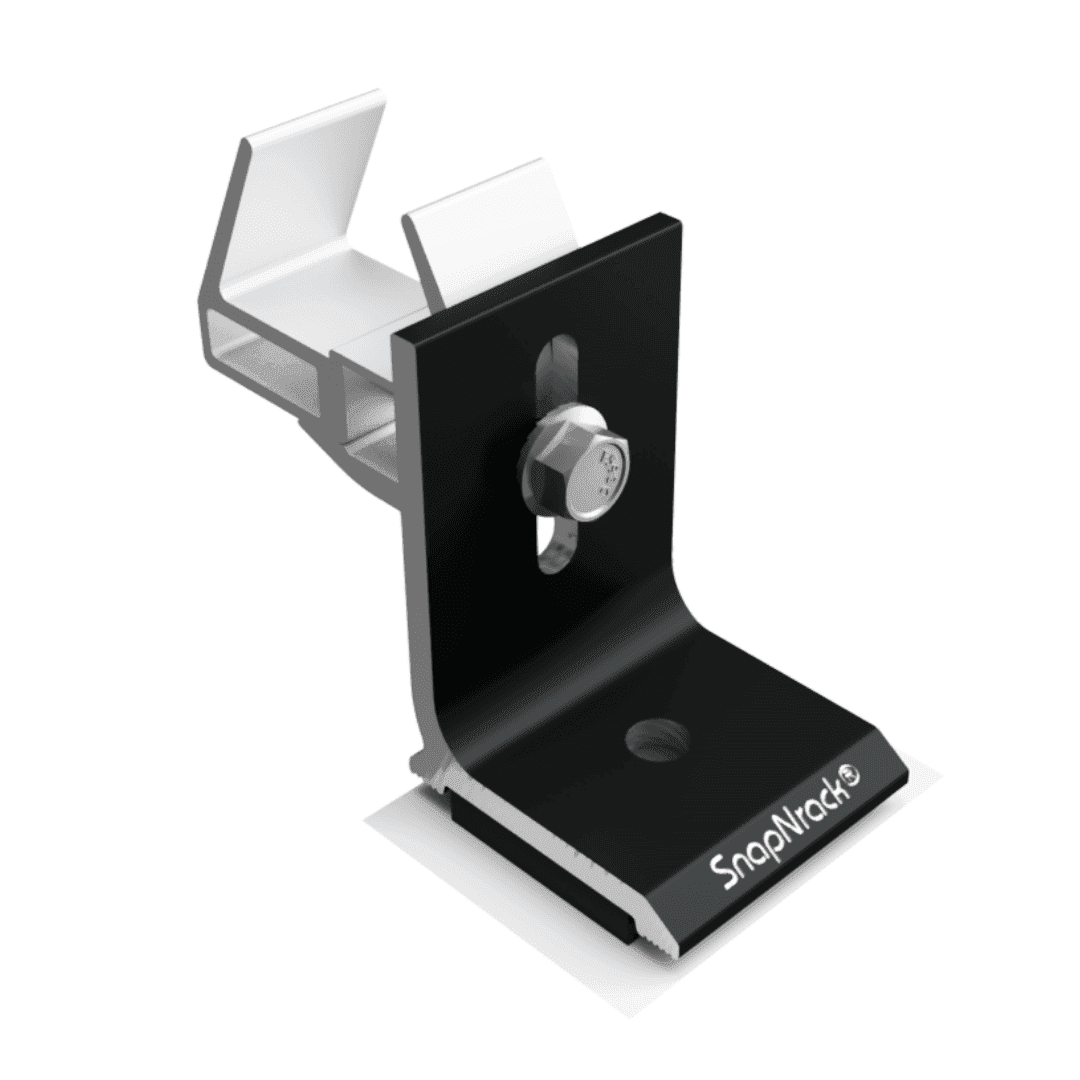

Conduit Supports
- Multiple options for all composition shingle applications including SpeedSeal™ Technology

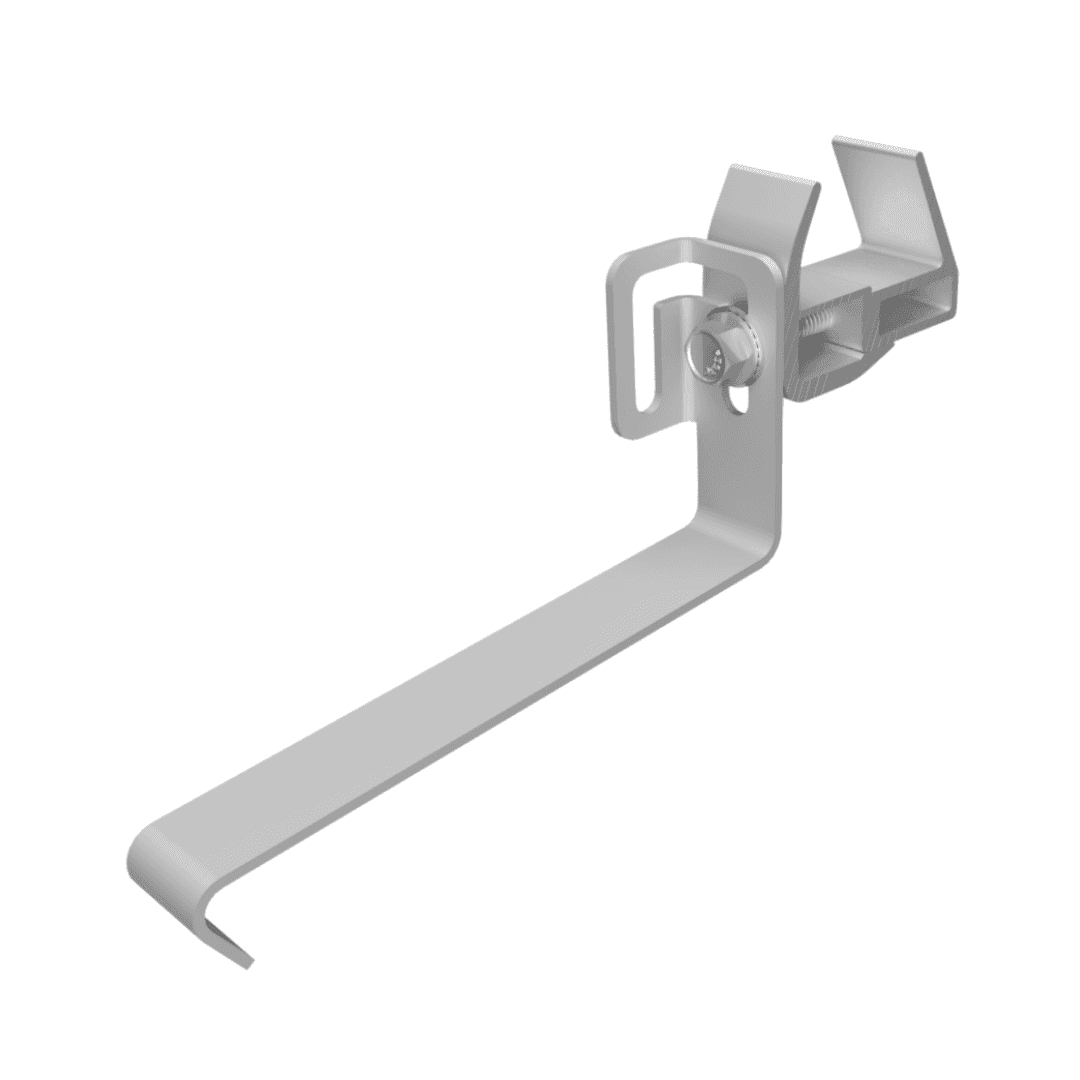

- Tile support requires no tools to attach to tiles
- Works with all 3/4” or 1” standard EMT conduit
Technical Features
Materials
- Junction Boxes: Polycarbonate, Closed Cell Foam, Aluminum, Stainless Steel
- FlashBox™: UV Resistant Polycarbonate, Stainless Steel
- OmniLug:
- Universal Wire Clamp: Black Rynite, 6000 Series Aluminum
Technical Features
Please review the individual Data Sheets for specific materials, torque specifications, certifications, etc.
Data sheets can be found under the Resources menu or with quick search.
