Ultra Rail Roof Mount System
The Ultimate Value in Rooftop Solar

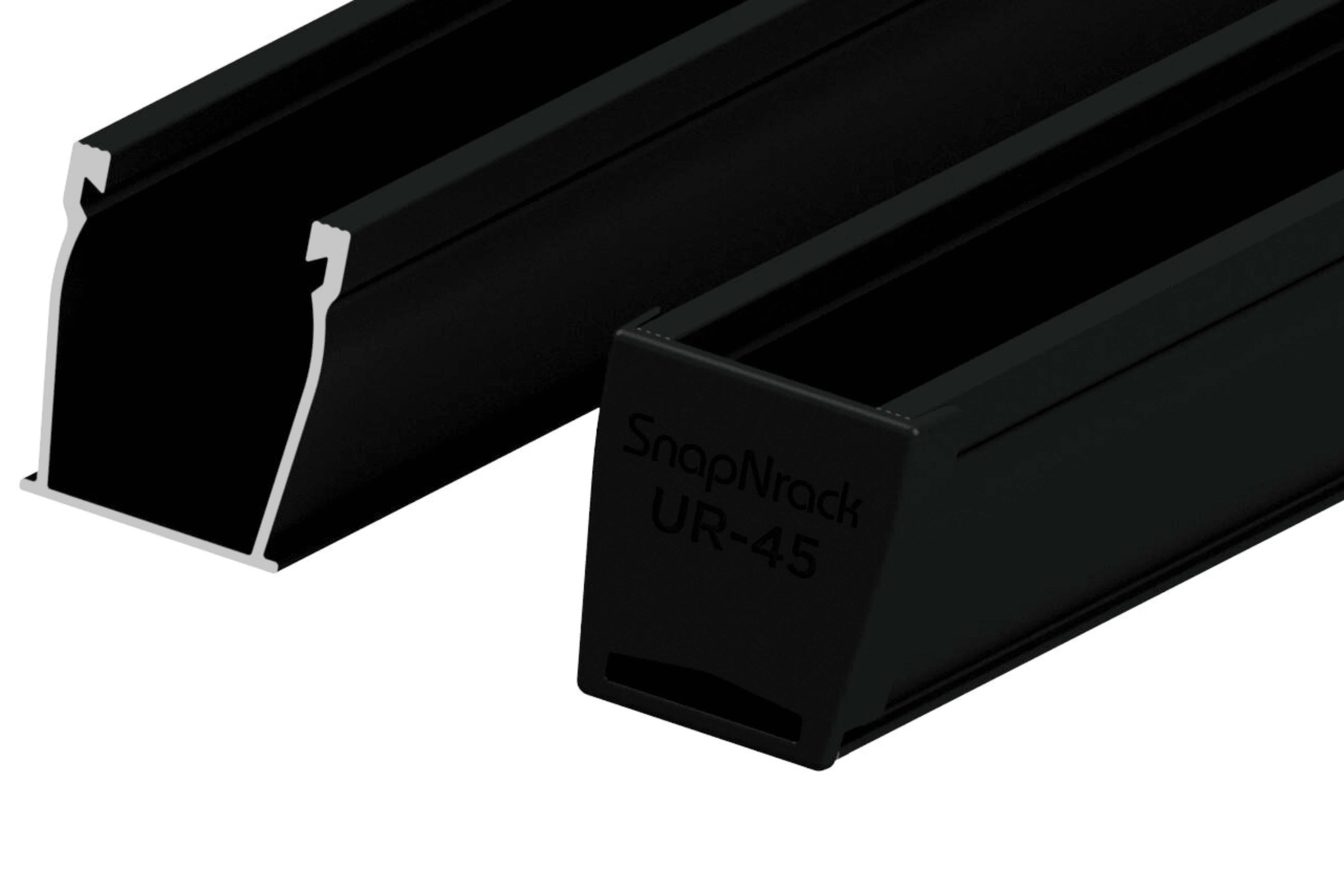

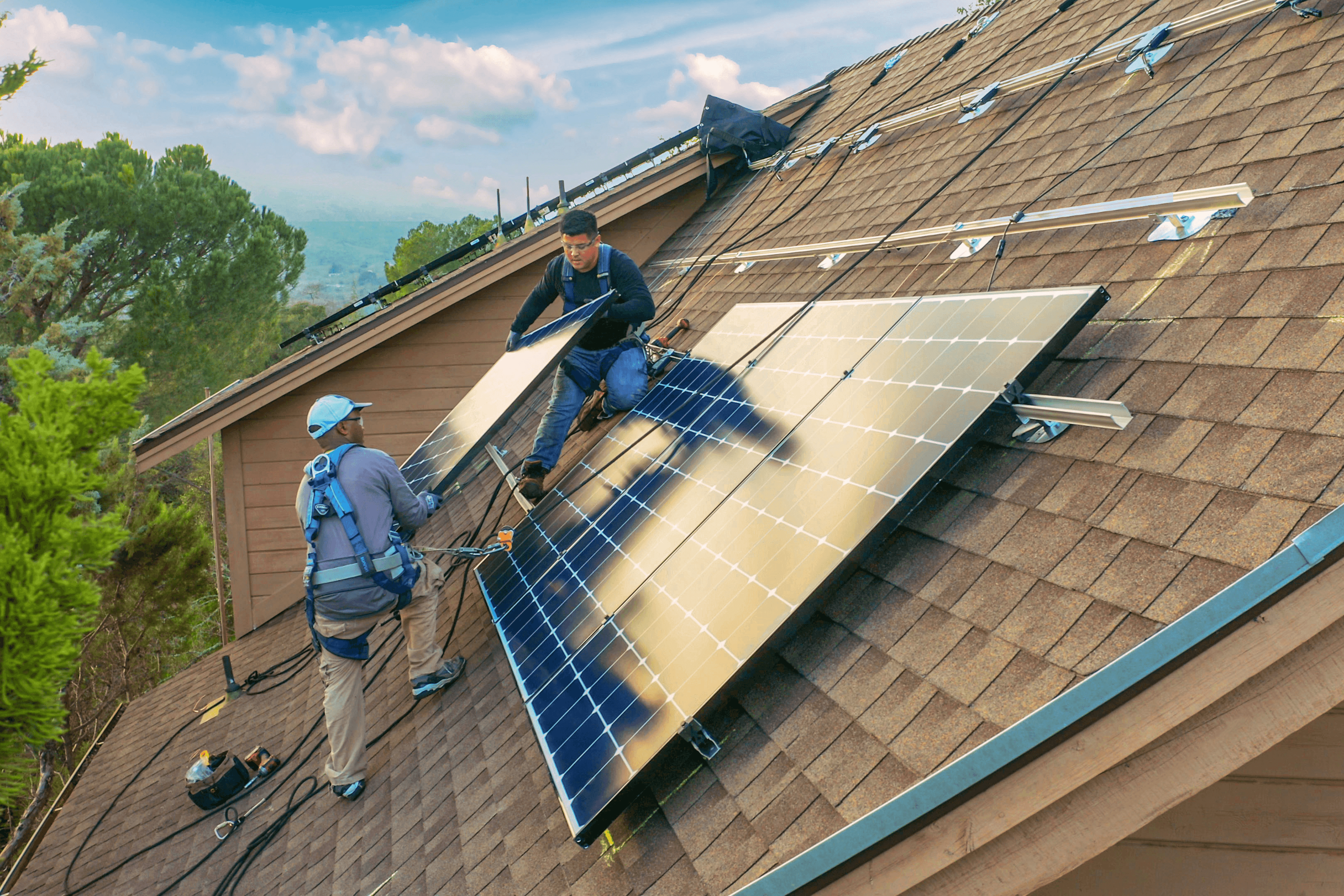

A sleek, straightforward rail solution for mounting solar modules on all roof types. Ultra Rail now features one rail profile, UR-45, a lightweight rail profile that’s suited for all geographic regions, with varying span capabilities. UR-45 Rail maintains all the great features of SnapNrack rail like snap-in module clamps and an open rail channel for integrated wire management. The Ultra Rail portfolio features multiple roof attachment sealing technologies for all install preferences.
Ultra Rail Roof Mount System
- Industry-leading aesthetics with Universal End Clamps and snap-in End Caps that make the mounting system invisible underneath the array
- Unparalleled wire management solutions with accessories such as Junction Boxes, Universal Wire Clamps, MLPE Attachment Kits, and Conduit Clamps

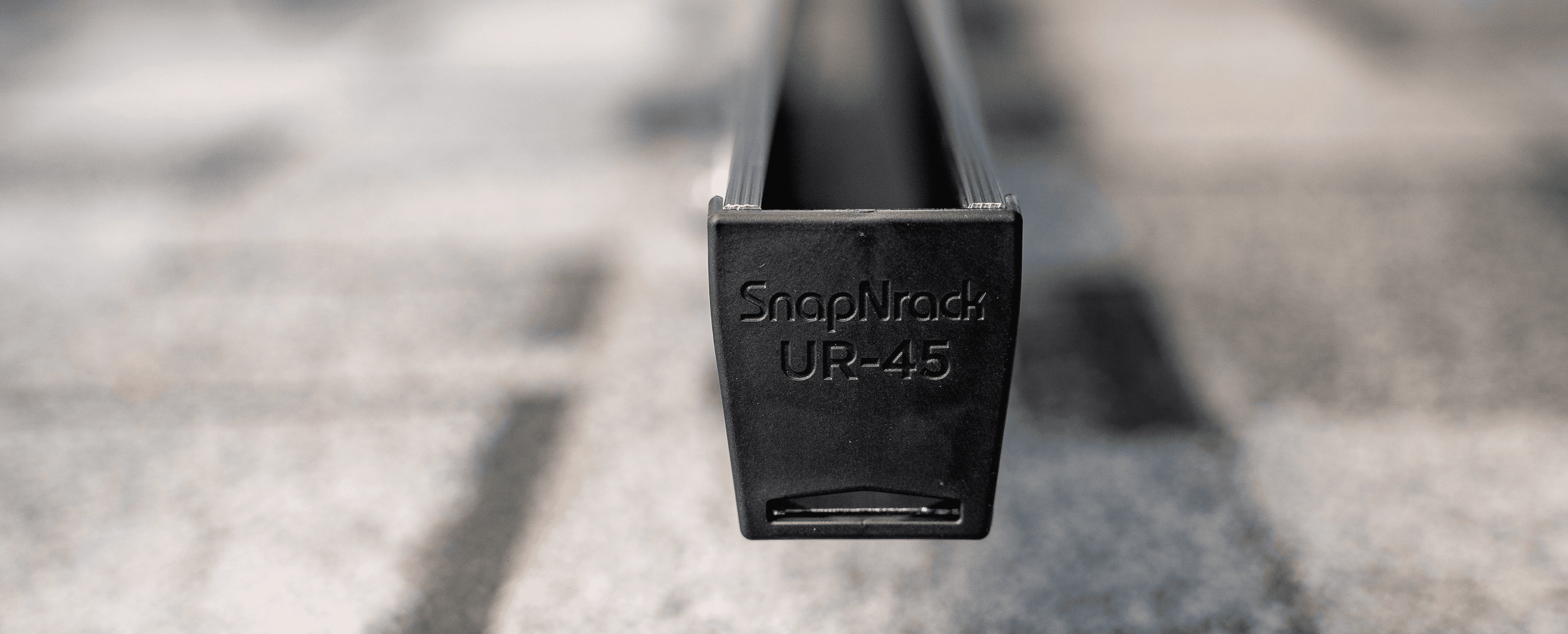

- Low profile UR-45 rail maintains the open channel with room for running wires resulting in a top quality finished install
- The largest span capabilities of any light rail solution
Technical Features
Materials
- 6000 Series aluminum
- Stainless steel hardware
- Aluminum flashings
Material Finish
- Black anodization or Mill finish rail
- Mill finish on select components
- Clear or black coated hardware
Wind Loads
- 110 – 190 mph (ASCE 7-10)
Snow Loads
- 0 – 120 psf
Roof Pitch
- 0 – 90 degrees
Certifications
